2 Lb Polyurethane Expanding Foam
2 Lb Polyurethane Expanding Foam
SKU:PF2Q
Ark Composites 2 lb Polyurethane Expanding Foam is a two-part, closed-cell rigid urethane pour foam formulated with a hydrofluoro-olefin (HFO) blowing agent. Mixed 1:1 by volume, it expands up to about 30 times its liquid volume to fill hulls, compartments and voids with low-absorption flotation foam.
Specifications
- Density: minimum in-place 2.5 lb/ft³ (40 kg/m³); free-rise about 2.0–2.2 lb/ft³
- Cell structure: approx. 97.7% closed cell
- Water absorption: 1.15%
- Mix ratio: 1:1 by volume (Part A : Part B)
- Expansion: up to about 30× in volume. One quart of mixed foam expands to about 1 ft³.
- Flotation: approx. 70 lb per cubic foot
- Compressive strength: 31 psi (213.6 kPa)
- Initial thermal resistance: 6.1 R/in (1.07 RSI)
- Blowing agent: hydrofluoro-olefin (HFO)
- Reactivity (hand mix @ 20 °C): cream 25–30 s · gel 155–180 s · tack-free 250–290 s
- Adheres to: metal, fiberglass and wood
- Properties: petroleum resistant; can be cut, sanded or painted once cured
- Approval: meets U.S. Coast Guard 33 CFR 183.114 (flotation material)
- Shelf life: 12 months

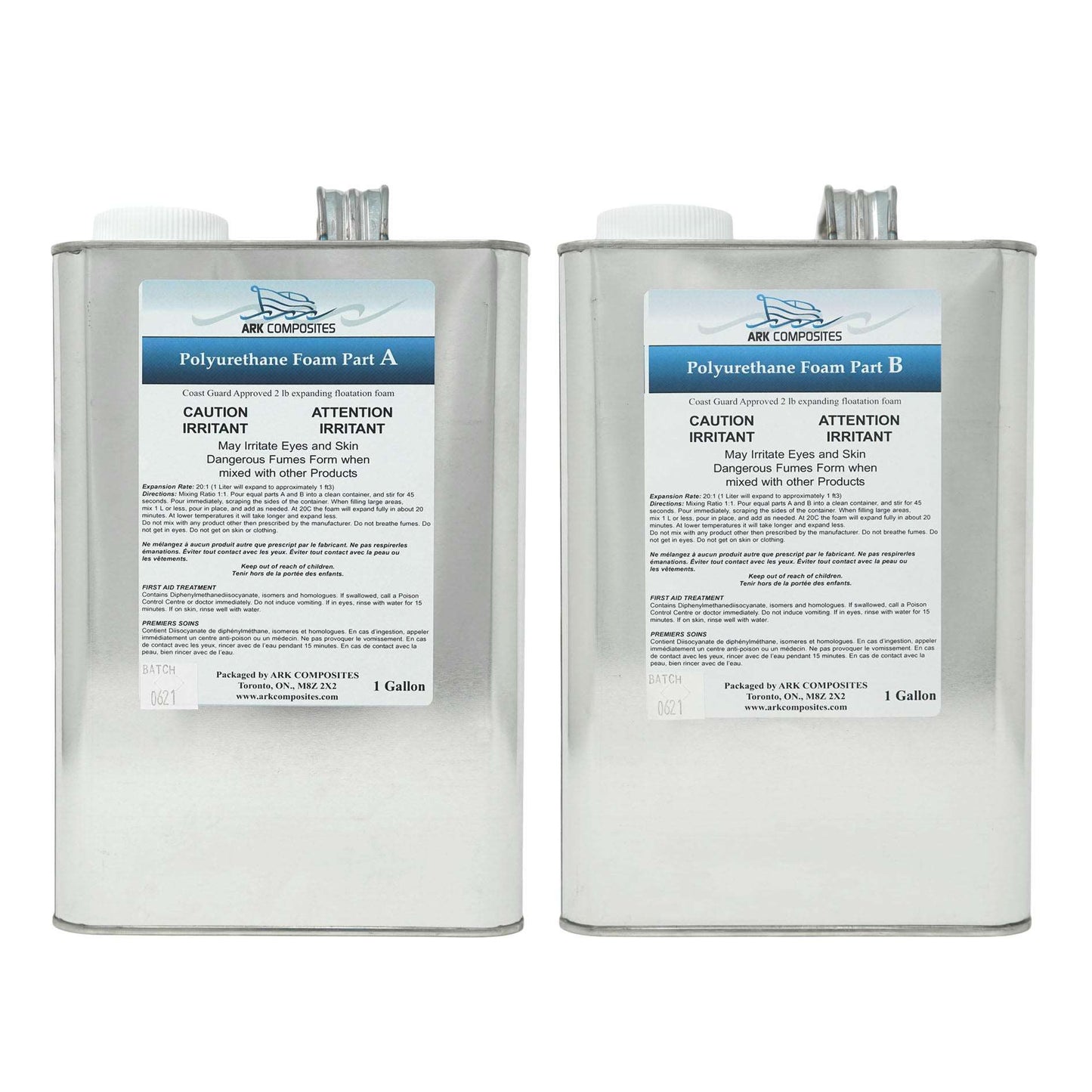

- Kit: Parts A and B included in the price; 2 quart, 2 gallon and 10 gallon sizes. The 2 quart kit is 1 quart of Part A plus 1 quart of Part B (2 quarts total), the 2 gallon kit is 1 gallon of Part A plus 1 gallon of Part B (2 gallons total), and the 10 gallon kit is 5 gallons of Part A plus 5 gallons of Part B (10 gallons total).
Applications
- Flotation in small boats, to prevent immediate sinking from below-waterline leaks
- Flotation, caulking and insulation in boats, vehicles and homes
- Filling voids and cavities
Working with the foam
Measure Parts A and B in equal volumes and mix thoroughly. At 20 °C (hand mix), cream begins in 25–30 seconds, the foam gels in 155–180 seconds and is tack-free in 250–290 seconds, so mix only what you can pour right away. To estimate how much you need, one quart of mixed foam fills about one cubic foot at the free-rise density; for best physical properties, aim for a core in-place density of at least 2.5 lb/ft³. Once tack-free, trim, sand or paint as needed.
For a higher-density structural foam, see 12 lb Polyurethane Expanding Foam, or browse all urethane foam.
